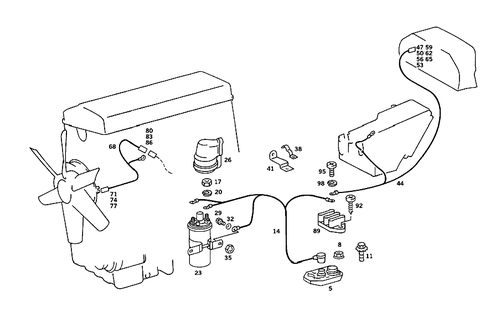

Ignition System and Cable Harness for Tachometer and Fan for 1984 Mercedes-Benz 190E
No.
Part # / Description / Price
Price
5
Control Unit
Mercedes-Benz
Mercedes-Benz Description: Only applicable to vehicles equipped with catalytic converter.
8
Hexagon Nut Mercedes-Benz
Mercedes-Benz Description: M6. Bracket to water tank. Mounting parts. Control unit. Bracket mounting. Brake booster assembly to asr bracket. Fuel lines to cowl. Transistorized ignition switchgear to wheelhouse panel. Roller blind to rear panel covering, top.
MSRP $3.40
$3.20
MSRP $3.40
$3.20
11
Screw Mercedes-Benz
Mercedes-Benz Notes: ONLY ON RETROFIT/CATALYST VEHICLES
Description: Ignition coil to left wheel arch panel. Hinge lever to engine hood. Transistorized ignition switchgear to wheelhouse panel. Ignition coil to wheelhouse panel. Ignition coil to battery frame. Electronic ignition system trigger box to wheelhouse panel. Bracket to wheel arch panel.
14
Wiring Harness Mercedes-Benz
Mercedes-Benz Notes: NOT FOR RETROFIT/CATALYST VEHICLES
Description: Transistorized ignition.
14
Line Mercedes-Benz
Mercedes-Benz Notes: ONLY ON RETROFIT/CATALYST VEHICLES
Description: Electronic ignition system.
23
Ignition Coil Mercedes-Benz
Mercedes-Benz Description: Only used with anti-lock braking system. Only on retrofit/catalyst vehicles. On abs hydraulic unit console,side.
23
Ignition Coil Mercedes-Benz
Mercedes-Benz Description: Not for retrofit/catalyst vehicles. Inapplicable to vehicles equipped with catalytic converter.
26
Protective Hood Mercedes-Benz
Mercedes-Benz Notes: ONLY ON RETROFIT/CATALYST VEHICLES
Description: Ignition coil.
MSRP $21.00
$20.00
MSRP $21.00
$20.00
26
38
Fastening Clamp Mercedes-Benz
Mercedes-Benz Description: Cable harness to side member. Electric cables to main floor. Tail lamp cable harness to tunnel. Cable harness to plate.
74
Cap Mercedes-Benz
Mercedes-Benz Description: Blower. 2-pin rk4. Back-up lamp cable. 2-pin rk4. To a 008 545 09 28. 2-pin rk4. To a 008 545 08 28. 2-pin rk4. Secondary air pump m33. 2-pin rk4. To 008 545 08 28/008 545 09 28. 2-pin rk4. Air injection m33. 2-pin rk4.
74
Cover Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
Description: To 008 545 08 28. Cool box a39/1. To 008 545 09 28. Blower. Brake fluid control,brake lining wear indication.
77
Contact Socket Mercedes-Benz
Mercedes-Benz Description: 4,0 MM. 0.35-6.0 MM2 RK4.0
Leitungsquerschnitt Min/Max: 0,35-6,0mm2
Oberflächenschutz PINs: Ag
ELA: -
Model 1: RK
Model 2: 4.0
Release tool: W220 589 01 99 52. TO 008 545 08 28,000 821 22 26. 0.35-6.0 MM2 RK4.0
Leitungsquerschnitt Min/Max: 0,35-6,0mm2
Oberflächenschutz PINs: Ag
ELA: -
Model 1: RK
Model 2: 4.0
Release tool: W220 589 01 99 52.
Leitungsquerschnitt Min/Max: 0,35-6,0mm2
Oberflächenschutz PINs: Ag
ELA: -
Model 1: RK
Model 2: 4.0
Release tool: W220 589 01 99 52. TO 008 545 08 28,000 821 22 26. 0.35-6.0 MM2 RK4.0
Leitungsquerschnitt Min/Max: 0,35-6,0mm2
Oberflächenschutz PINs: Ag
ELA: -
Model 1: RK
Model 2: 4.0
Release tool: W220 589 01 99 52.
MSRP $3.40
$3.20
MSRP $3.40
$3.20
83
Housing Upper Part Mercedes-Benz
Mercedes-Benz Description: To 008 545 20 28,011 545 10 28. Rear fuel pump cable harness plugconnection.
MSRP $2.70
$2.56
MSRP $2.70
$2.56
86
Plug Pin Mercedes-Benz
Mercedes-Benz Description: To 011 545 10 28. 4.0 mm. To 009 545 14 28. Tempomat(cruise control) plug-connect. To 012 545 84 28. 4.0mm2.
89
Cable Connector Mercedes-Benz
Mercedes-Benz Description: Bipolar. At left wheel arch panel. Double. Terminal td. Two-pole. On front door. Terminal "58d".
92
Tapping Screw Mercedes-Benz
Mercedes-Benz Description: Ashtray to housing. Defroster nozzle to instrument panel.
MSRP $1.50
$1.44
MSRP $1.50
$1.44
98
Spring Lock Washer Mercedes-Benz
Mercedes-Benz Description: Cables to cable connector. At front center stiffening. Blinker & tempomat switches to steering column jacket tube. Cable to resistor. Main cable harness to radiator baffle, right. Starting cable to cable connector.
MSRP $1.40
$1.28
MSRP $1.40
$1.28
1 This price excludes a refundable manufacturer's core charge. Add the part to your cart to see the core charge.
No.
Part # / Description / Price
Price
N/A
Ignition Control Box Mercedes-Benz
Mercedes-Benz Notes: DIE LOSE IM MOTORLEITUNGSSATZ LIEGENDE BRAUN/ROTE LEITUNG 10 CM VOR DEM STECKER EZL HERAUSZIEHEN UND MIT KABELSCHUH 6 MM AN MASSE W3 (ZUENDSPULE) ANSCHLIESSEN
N/A
Ignition Control Box Mercedes-Benz
Mercedes-Benz Notes: DIE LOSE IM MOTORLEITUNGSSATZ LIEGENDE BRAUN/ROTE LEITUNG 10 CM VOR DEM STECKER EZL HERAUSZIEHEN UND MIT KABELSCHUH 6 MM AN MASSE W3 (ZUENDSPULE) ANSCHLIESSEN
8
Hexagon Nut Mercedes-Benz
Mercedes-Benz Description: M6. Bracket to water tank. Mounting parts. Control unit. Bracket mounting. Brake booster assembly to asr bracket. Fuel lines to cowl. Transistorized ignition switchgear to wheelhouse panel. Roller blind to rear panel covering, top.
MSRP $3.40
$3.20
MSRP $3.40
$3.20
