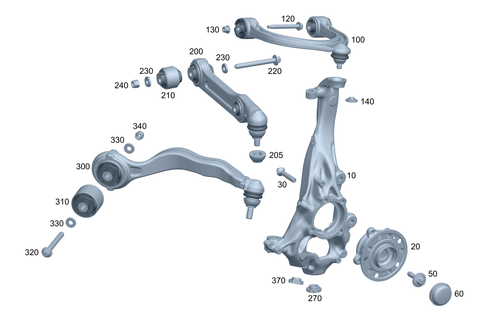

Steering Knuckle and Transverse Control Arm for 1985 Mercedes-Benz 300CD
No.
Part # / Description / Price
Price
10
MSRP $464.00
$444.80
10
MSRP $635.00
$608.00
20
MSRP $340.00
$326.40
30
Hexalobular Head Screw
Mercedes-Benz
Mercedes-Benz Description: M12X57,5
Diameter: 12mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1,5mm. To left steering knuckle, front axle. Wheel bearing left rear. Drive shaft to front wheel hub, left. Wheel bearing to steering knuckle at left M12X57,5.
Diameter: 12mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1,5mm. To left steering knuckle, front axle. Wheel bearing left rear. Drive shaft to front wheel hub, left. Wheel bearing to steering knuckle at left M12X57,5.
MSRP $6.50
$6.24
MSRP $6.50
$6.24
30
Hexalobular Head Screw Mercedes-Benz
Mercedes-Benz Description: M12x1,5x101. To left steering knuckle, front axle. Wheel bearing to left steering knuckle.
MSRP $13.00
$12.32
MSRP $13.00
$12.32
100
MSRP $326.00
$312.00
100
MSRP $338.00
$323.20
120
Hex Head Screw W Flange Mercedes-Benz
Mercedes-Benz Description: Transverse control arm to left body. M12x1,5x107.
120
Hex Head Screw W Flange Mercedes-Benz
Mercedes-Benz Description: Transverse control arm to left body. M12x1,5x110.
MSRP $23.50
$22.40
MSRP $23.50
$22.40
140
Hex Nut W Flange + Piece Mercedes-Benz
Mercedes-Benz Description: M14X1,5
Diameter: 14mm
Strength / hardness class: 10
Thread code letter: M
Thread pitch: 1,5mm. Arm to steer. Knuck. Transverse control arm to left body. Nut, ball joint, transverse control arm, left, upper, front axle.
Diameter: 14mm
Strength / hardness class: 10
Thread code letter: M
Thread pitch: 1,5mm. Arm to steer. Knuck. Transverse control arm to left body. Nut, ball joint, transverse control arm, left, upper, front axle.
MSRP $3.70
$3.52
MSRP $3.70
$3.52
200
MSRP $242.00
$232.00
200
MSRP $250.00
$238.40
205
Pilot Bushing Mercedes-Benz
Mercedes-Benz Description: Ball joint, spring control arm, left, front axle. Left spring link.
MSRP $21.00
$20.00
MSRP $21.00
$20.00
210
MSRP $124.00
$118.40
210
MSRP $182.00
$174.40
220
Hexalobular Screw Mercedes-Benz
Mercedes-Benz Description: M14X1,5X125
Diameter: 14mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1,5mm. Left spring link to integral carrier. Torque strut to integral carrier, left. Spring link left to frame-type integral support.
Diameter: 14mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1,5mm. Left spring link to integral carrier. Torque strut to integral carrier, left. Spring link left to frame-type integral support.
MSRP $34.50
$32.80
MSRP $34.50
$32.80
230
Washer, Plane Parallel Mercedes-Benz
Mercedes-Benz Description: Spring link to integral carrier, left.
MSRP $4.50
$4.32
MSRP $4.50
$4.32
240
Hexagon Nut Mercedes-Benz
Mercedes-Benz Description: M14X1.5
Diameter: 14mm
Strength / hardness class: 10
Thread code letter: M
Thread pitch: 1,5mm
Width across flats: 21mm. Strut rod to integral carrier. Cross strut to integral carrier. Transverse control arm to left steering knuckle. Torque strut to frame-type int. Supp.. Lower transverse control arm to left wheel carrier.
Diameter: 14mm
Strength / hardness class: 10
Thread code letter: M
Thread pitch: 1,5mm
Width across flats: 21mm. Strut rod to integral carrier. Cross strut to integral carrier. Transverse control arm to left steering knuckle. Torque strut to frame-type int. Supp.. Lower transverse control arm to left wheel carrier.
MSRP $7.00
$6.56
MSRP $7.00
$6.56
270
Bihexagonal Nut W Flange Mercedes-Benz
Mercedes-Benz Description: Spring link to steering knuckle, left.
MSRP $7.50
$7.04
MSRP $7.50
$7.04
300
MSRP $236.00
$225.60
300
MSRP $236.00
$225.60
310
Tension Strut Bushing Mercedes-Benz
Mercedes-Benz Description: Left, negative caster adjustment.
MSRP $164.00
$156.80
MSRP $164.00
$156.80
310
Tension Strut Bushing Mercedes-Benz
Mercedes-Benz Description: Left, positive caster adjustment.
MSRP $195.00
$187.20
MSRP $195.00
$187.20
