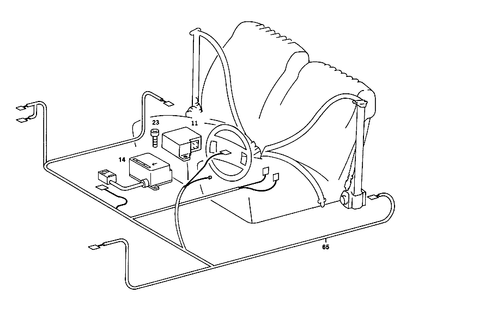

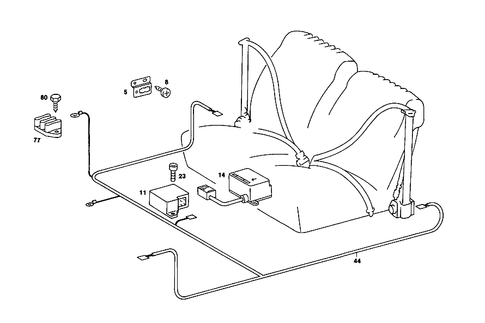

Belt Tensioner and Airbag for 1986 Mercedes-Benz 560SL
No.
Part # / Description / Price
Price
5
Holder
Mercedes-Benz
Mercedes-Benz Description: Cable harness to central pillar,bottom right. Cable harness to front panel,lateral inside left. Plug connection to tail lamp cable harness. Declutching-start/back-up-light switch plug connection. Below rear seat. Main cable harness plug connection. 12-pole coupler to front panel pillar. Belt locking retractor plug-connection. Fuel pump relay.
8
Tapping Screw Mercedes-Benz
Mercedes-Benz Description: Ashtray to housing. Defroster nozzle to instrument panel.
MSRP $1.50
$1.44
MSRP $1.50
$1.44
14
Acceleration Sensor Mercedes-Benz
Mercedes-Benz Notes: EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO IDENT NO. 7/89
Description: Driver's air bag with belt locking retractor. Belt tensioner and airbag. Airbag with belt locking retractor bosch.
MSRP $1,900.00
$1,824.00
MSRP $1,900.00
$1,824.00
14
23
Hexalobular Screw Mercedes-Benz
Mercedes-Benz Description: Left and right flap paneling to hinge.
MSRP $1.40
$1.28
MSRP $1.40
$1.28
77
Cable Connector Mercedes-Benz
Mercedes-Benz Description: Bipolar. At left wheel arch panel. Double. Terminal td. Two-pole. On front door. Terminal "58d".
80
MSRP $22.50
$21.60
No.
Part # / Description / Price
Price
14
Accelerator Sensor For Airbag Mercedes-Benz
Mercedes-Benz Notes: UP TO END OF MODEL YEAR '87
Description: Belt locking retractor.
MSRP $745.00
$713.60
MSRP $745.00
$713.60
17
Pin Bushing Housing Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
UP TO END OF MODEL YEAR '87
UP TO END OF MODEL YEAR '87
Description: Test plug airbag. Primer-pellet cable harness plugconnection. Cable-harness plug-connection,10-pole.
20
Contact Socket Mercedes-Benz
Mercedes-Benz Notes: UP TO END OF MODEL YEAR '87
Description: 2.5 M. 0.35-2.5 MM2 RK2.5Leitungsquerschnitt Min/Max: 0,35-2,5mm2Oberflächenschutz PINs: AgELA: -Model 1: RKModel 2: 2.5Release tool: W220 589 01 99 30 / W220 589 01 99 53Crimp tool: W220 589 01 99 06. TO 201 540 02 81. 0.35-2.5 MM2 RK2.5Leitungsquerschni ...
MSRP $2.70
$2.56
MSRP $2.70
$2.56
29
Electrical Unit Mercedes-Benz
Mercedes-Benz Notes: UP TO END OF MODEL YEAR '87
Description: (voltage transformer).
32
MSRP $5.50
$5.12
38
Spring Nut Mercedes-Benz
Mercedes-Benz Description: Control unit to c-pillar. Bracket to c-pillar. Anti-tow-away sensor. Bracket mounting aeg. Instrument panel to cross member. Abs control unit. Control unit to mounting plate. Bracket to wheelhouse. Electronic gas control unit. Instrument panel to knee protection pad.
MSRP $2.00
$1.92
MSRP $2.00
$1.92
41
Tapping Screw Mercedes-Benz
Mercedes-Benz Notes: UP TO END OF MODEL YEAR '87
Description: Handle to bracket. Condenser to stay.
65
Wiring Harness Mercedes-Benz
Mercedes-Benz Notes: UP TO END OF MODEL YEAR '87
Description: Airbag with belt locking retractor.
No.
Part # / Description / Price
Price
