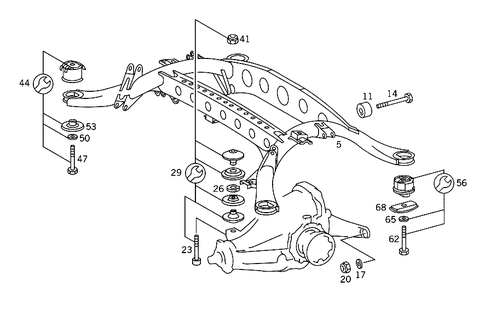

Rear Axle Support for 1998 Mercedes-Benz S420
No.
Part # / Description / Price
Price
11
Rubber Bushing
Mercedes-Benz
Mercedes-Benz Notes: FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. A 177336
Description: Axle housing to rear subframe,rear.
14
MSRP $7.00
$6.72
14
Screw Mercedes-Benz
Mercedes-Benz Notes: FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. A 353296
IMPORTANT: OBSERVE CHANGED TIGHTENING TORQUES
17
MSRP $3.20
$3.04
17
MSRP $2.20
$2.08
20
Hexagon Nut Mercedes-Benz
Mercedes-Benz Notes: FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. A 353296
IMPORTANT: OBSERVE CHANGED TIGHTENING TORQUES
Description: Spring control arm to rear subframe. Upper transverse control arm to steering knuckle. Lower control arm to steering knuckle. Torsion bar to frame. Lower joint to control arm. Joint to steering knuckle. Shock absorber to lower control arm.
MSRP $7.50
$7.20
MSRP $7.50
$7.20
23
Cap Screw Mercedes-Benz
Mercedes-Benz Description: Axle housing at rear axle carrier, front. M10X65
Diameter: 10mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1mm. Differential to cross stabilizer front. Axle housing to rear subframe.
Diameter: 10mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1mm. Differential to cross stabilizer front. Axle housing to rear subframe.
MSRP $3.90
$3.68
MSRP $3.90
$3.68
23
Cap Screw Mercedes-Benz
Mercedes-Benz Notes: FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. A 353296
IMPORTANT: OBSERVE CHANGED TIGHTENING TORQUES
Description: Axle housing to rear subframe,front.
26
Spacer Disk Mercedes-Benz
Mercedes-Benz Description: Adapter to rear axle centerpiece. 4 mm. Differential to cross stabilizer front 4 mm. 4 mm. Rear axle differential to front cross brace 4 MM. 4 MM. As required 4.0 mm. 4 mm. As required, no. Of notches:. 4 mm. As required 4.00 mm. 4 mm.
MSRP $5.75
$5.44
MSRP $5.75
$5.44
26
Spacer Disk Mercedes-Benz
Mercedes-Benz Description: Adapter to rear axle centerpiece. 2mm. Differential to cross stabilizer front 2mm. 2mm. Rear axle differential to front cross brace 2mm. 2mm. As required 2.0 mm. 2mm. As required, no. Of notches:. 2mm. As required 2.00 mm. 2mm.
MSRP $5.50
$5.12
MSRP $5.50
$5.12
26
Spacer Disk Mercedes-Benz
Mercedes-Benz Description: Adapter to rear axle centerpiece. 1 mm. Differential to cross stabilizer front 1 mm. 1 mm. Rear axle differential to front cross brace 1 MM. 1 MM. As required 1.0 mm. 1 mm. As required, no. Of notches:. 1 mm. As required 1.00 mm. 1 mm.
MSRP $4.70
$4.48
MSRP $4.70
$4.48
26
Spacer Disk Mercedes-Benz
Mercedes-Benz Description: Adapter to rear axle centerpiece. 3 mm. Differential to cross stabilizer front 3 mm. 3 mm. Rear axle differential to front cross brace 3 MM. 3 MM. As required 3.0 mm. 3 mm. As required, no. Of notches:. 3 mm. As required 3.00 mm. 3 mm.
MSRP $6.00
$5.76
MSRP $6.00
$5.76
29
Rubber Bushing Mercedes-Benz
Mercedes-Benz Description: Axle housing at rear axle carrier, front. Axle housing to rear subframe,front.
MSRP $13.50
$12.96
MSRP $13.50
$12.96
41
Nut Mercedes-Benz
Mercedes-Benz Notes: FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. A 353296
IMPORTANT: OBSERVE CHANGED TIGHTENING TORQUES
Description: Steering shock absorber to front axle. Steering shock absorber to drag link and to frame.
41
Hexagon Nut Mercedes-Benz
Mercedes-Benz Description: M10
Diameter: 10mm
Strength / hardness class: 10
Thread code letter: M
Thread pitch: 1,5mm
Width across flats: 16mm. Rod to torsion bar. Shock absorber to frame. Trailer coupling to bracket. Camber struts to wheel bearing m 10. Shock absorber to spring control arm m 10. Axle housing to rear subframe. Tie rod to wheel bearing m10.
Diameter: 10mm
Strength / hardness class: 10
Thread code letter: M
Thread pitch: 1,5mm
Width across flats: 16mm. Rod to torsion bar. Shock absorber to frame. Trailer coupling to bracket. Camber struts to wheel bearing m 10. Shock absorber to spring control arm m 10. Axle housing to rear subframe. Tie rod to wheel bearing m10.
MSRP $3.90
$3.68
MSRP $3.90
$3.68
44
47
Hexagon Head Bolt Mercedes-Benz
Mercedes-Benz Description: Rear subframe to frame floor unit, front.
MSRP $15.00
$14.24
MSRP $15.00
$14.24
56
Rubber Bushing Mercedes-Benz
Mercedes-Benz Description: Rear subframe to frame floor unit,rear.
MSRP $224.00
$214.40
MSRP $224.00
$214.40
65
Washer Mercedes-Benz
Mercedes-Benz Description: BRACKET TO CONSOLE
Diameter: 13mm
Strength / hardness class: 200 HV
Inside diameter: 13mm
Outside diameter: 30mm
Material thickness: 6mm.
Diameter: 13mm
Strength / hardness class: 200 HV
Inside diameter: 13mm
Outside diameter: 30mm
Material thickness: 6mm.
