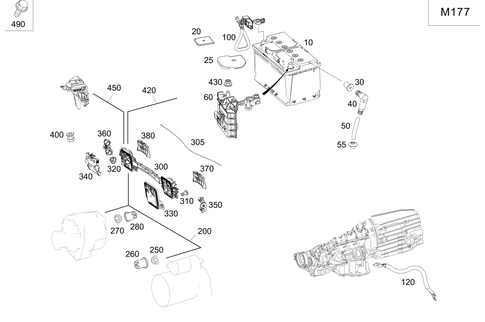

Battery, Starter/Alternator Cable for 2021 Mercedes-Benz AMG GT 63

10

19828108 - Electrical Equipment and Instruments: Electrical System Battery for Mercedes-Benz Image

Electrical System Battery ²

Mercedes-Benz

Description: In rear end. 12V/80AHVolt: 12VAmps: 80AHGefahrgutkennzeichen: 9.2 Miscellaneous dangerous goods (other dangerous substances). Starter motor, battery. 12V/80AHVolt: 12VAmps: 80AHGefahrgutkennzeichen: 9.2 Miscellaneous dangerous goods (other dangerous substa ...

Not For Sale

10

9826925 - Electrical Equipment and Instruments: Electrical System Battery for Mercedes-Benz Image

Starter Battery ²

000-982-69-25

Mercedes-Benz

Notes: PART MUST BE CHECKED FOR CURRENT FLASHWARE AFTER INSTALLAT ION

Description: 12V 58AH
Gefahrgutkennzeichen: 9.5 Miscellaneous dangerous goods (lithium-ion batteries).

Not For Sale

10

19828208 - Electrical Equipment and Instruments: Electrical System Battery for Mercedes-Benz Image

Battery ²

001-982-82-08

Mercedes-Benz

Description: Maintenance free. 12V/92AHVolt: 12VAmps: 92AHGefahrgutkennzeichen: 9.2 Miscellaneous dangerous goods (other dangerous substances). 95 amp. In trunk. 12V/92AHVolt: 12VAmps: 92AHGefahrgutkennzeichen: 9.2 Miscellaneous dangerous goods (other dangerous substan ...

Not For Sale

20

Protective Cap

001-546-08-35

Mercedes-Benz

Description: Positive pole. Terminal post cap. Pole cover cap. Pole, starter and on-board ele. Sys. Battery.

MSRP $4.50

$4.32

MSRP $4.50

$4.32

25

Insulating Cap

000-546-85-02

Mercedes-Benz

Description: Battery pos. Pole. For battery. Terminal post cap. Current limiter. Insulation to cover.

MSRP $2.50

$2.40

MSRP $2.50

$2.40

30

Grommet

002-997-24-86

Mercedes-Benz

Description: Acid collecting pan. 6x8 mm. Rear battery. 6X8 MM. Battery vent. 6X8 MM.

MSRP $2.00

$1.92

MSRP $2.00

$1.92

40

Angle Piece

000-990-38-72

Mercedes-Benz

Description: On battery,laterally. To side battery. Battery venting. Battery vent, on side of battery. To support battery. Elbow fitting, bleed line, battery.

MSRP $4.50

$4.32

MSRP $4.50

$4.32

50

249974982 - Electrical Equipment and Instruments: Hose for Mercedes-Benz Image

Vent Hose

024-997-49-82

Mercedes-Benz

Notes: ORDER BY THE METER

Description: At angle. 5 x 1 mm. Support battery battery vent. 5 X 1 MM. To side battery. 5 X 1 MM. Lower edge guard in rear. 5 x 1 mm. Vent hose, buffer battery. 5 X 1 MM. Bleed line, battery. 5 X 1 MM. Battery vent, backup battery. 5 x 1 mm.

MSRP $10.00

$9.60

MSRP $10.00

$9.60

50

Vent Hose

000-997-66-08

Mercedes-Benz

Description: Battery vent. Bleed line, battery.

View Details

55

Stop Plug

000-998-18-50

Mercedes-Benz

MSRP $0.90

$0.80

MSRP $0.90

$0.80

60

Current Limiter

000-906-15-05

Mercedes-Benz

Description: To battery. Positive pole. Voltage dip limiter / starter series relay.

MSRP $192.00

$184.00

MSRP $192.00

$184.00

100

Battery Sensor

000-905-89-12

Mercedes-Benz

Description: Negative line with battery sensor. Ground line with battery sensor.

MSRP $132.00

$126.40

MSRP $132.00

$126.40

100

Battery Sensor

000-905-35-16

Mercedes-Benz

Description: Negative line with battery sensor. Ground line with battery sensor.

View Details

100

Battery Sensor

000-905-88-12

Mercedes-Benz

Description: Negative line with battery sensor. Ground line with battery sensor.

MSRP $145.00

$139.20

MSRP $145.00

$139.20

100

Battery Sensor

000-905-47-16

Mercedes-Benz

Description: Negative line with battery sensor. Ground line with battery sensor.

MSRP $210.00

$200.00

MSRP $210.00

$200.00

120

Electrical Wiring Harness

213-540-56-41

Mercedes-Benz

Description: From transmission to body. Engine to body. Engine ground line.

View Details

200

Electrical Wiring Harness

213-540-07-27

Mercedes-Benz

Description: Connecting point to starter, alternator and glow time output stage.

MSRP $330.00

$315.20

MSRP $330.00

$315.20

250

Hexagon Nut

000-990-43-37

Mercedes-Benz

MSRP $1.00

$0.96

MSRP $1.00

$0.96

250

5480472 - Electrical Equipment and Instruments: Nut for Mercedes-Benz Image

Nut

000-548-04-72

Mercedes-Benz

MSRP $3.20

$3.04

MSRP $3.20

$3.04

250

Hexagon Nut

000000-008290-65

Mercedes-Benz

MSRP $2.40

$2.24

MSRP $2.40

$2.24

260

Protective Cap

001-546-61-35

Mercedes-Benz

Description: Cable to starting motor,terminal 30. M8.

View Details

300

Busbar

205-545-14-00

Mercedes-Benz

Description: Line connection. On right partition. Busbar.

MSRP $55.00

$52.00

MSRP $55.00

$52.00

300

Busbar

205-545-23-01

Mercedes-Benz

Description: Line connection.

View Details

300

Busbar

205-545-22-01

Mercedes-Benz

Description: Line connection.

View Details

305

Electrical Wiring Harness

213-540-77-99

Mercedes-Benz

Description: Busbar X244/9 TO X244/10.

View Details

310

Pan Head Screw W Collar

000-990-53-15

Mercedes-Benz

Description: Fastening, busbar. Busbar mount. Busbar/cover cap to right partition. Left assist handle mount. Bracket to fire wall. Holder mount.

View Details

320

317565 - Electrical Equipment and Instruments: Nut for Mercedes-Benz Image

Nut

000000-003175-65

Mercedes-Benz

Description: Spring strut to body. M8
Diameter: 8mm
Strength / hardness class: 8
Thread code letter: M
Thread pitch: 1,25mm
Outside diameter: 17,9mm
Width across flats: 13mm. Suspension strut to body. Torsion bar on body.

View Details

320

Nut

913025-008000-64

Mercedes-Benz

Description: Cable harness mounting. M8
Diameter: 8mm
Strength / hardness class: 8
Thread code letter: M
Thread pitch: 1,25mm
Outside diameter: 17,9mm
Width across flats: 13mm. Line to powerpack. Fastening, circuit 30 to alternator. Relay mounting. Cable to fuse box. Alternator wiring harness to busbar, on vehicle. On-board electrical network lines to starter battery and control unit. Sound generator to holder. Starter wiring harness to busbar, on vehicle.

MSRP $1.50

$1.44

MSRP $1.50

$1.44

330

Cover Cap, Busbar

205-545-06-00

Mercedes-Benz

Description: Left rear. False cover. Rear right.

View Details

340

Cover Cap, Busbar

205-545-07-00

Mercedes-Benz

Description: At engine side. On engine end. To front busbar. Left and right.

MSRP $3.00

$2.88

MSRP $3.00

$2.88

350

Cover Cap, Busbar

205-545-29-01

Mercedes-Benz

Description: Left side. Lateral support, left.

View Details

360

Cover Cap, Busbar

205-545-10-00

Mercedes-Benz

Description: Right side. Lateral support, right.

View Details

360

Cover Cap, Busbar

205-545-28-01

Mercedes-Benz

Description: Right side. Lateral support, right. To right busbar.

View Details

370

Cover Cap, Busbar

205-545-18-00

Mercedes-Benz

Description: Left. To rear busbar.

MSRP $1.50

$1.44

MSRP $1.50

$1.44

400

Nut, Special Form

001-990-85-52

Mercedes-Benz

Description: Jump start NEGATIVE connection. Jump start negative terminal. Jump-start connection point.

MSRP $3.00

$2.88

MSRP $3.00

$2.88

420

Electrical Wiring Harness

213-540-68-00

Mercedes-Benz

Description: Battery to busbar.

MSRP $101.00

$96.77

MSRP $101.00

$96.77

420

Electrical Wiring Harness

213-540-69-00

Mercedes-Benz

Description: Battery to busbar.

View Details

450

Electrical Wiring Harness

213-540-72-42

Mercedes-Benz

Description: Connecting point to prefuse box.

MSRP $48.50

$46.40

MSRP $48.50

$46.40

450

Electrical Wiring Harness

213-540-93-38

Mercedes-Benz

Description: Connecting point to prefuse box.

View Details

490

Hexalobular Screw

000000-000276

Mercedes-Benz

Description: M8x20-10.9. Strut mounting m 8x20.

MSRP $4.90

$4.70

MSRP $4.90

$4.70

490

Hexalobular Screw

910143-006000

Mercedes-Benz

Description: Rear lid to hinge lever. Drive to rear pillar. Pipe line to shock absorber leg reinforcement. Strut to front cross member. Bracket to car floor. Cooling pipe to front cross member. Engine hood upper catch to engine hood. Partition panel. Strut to stiffening,front central.

View Details

510

Starter Battery

000-982-45-20-64

Mercedes-Benz

Notes: When selling the high-voltage battery to end customers/over-the-counter customers, the information on the high-voltage battery AH54.10-P-0001-01A must be handed over.
PART MUST BE CHECKED FOR CURRENT FLASHWARE AFTER INSTALLAT ION

Description: Treated as a potential dangerous goods part.
Gefahrgutkennzeichen: 0.0 Dangerous goods identification not yet completed.

MSRP $2,400.00

$2,304.00

MSRP $2,400.00

$2,304.00

520

Control Unit

000-900-69-20

Mercedes-Benz

Notes: PART MUST BE CHECKED FOR CURRENT FLASHWARE AFTER INSTALLAT ION
ALSO ORDER TS CONDUCTIVE PASTE A 222 989 00 00

Description: DC current charge-connection unit. To battery. Control unit DC/DC converter.

MSRP $234.00

$224.00

MSRP $234.00

$224.00

530

Hexalobular Screw

000000-001588

Mercedes-Benz

Description: DC/DC converter mount to holder. M5XDT19
Diameter: 5mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1mm. Battery fastening. Fastening, dc/dc converter. Control unit mount. To starter battery front. Dc/dc converter to battery.

MSRP $1.00

$0.90

MSRP $1.00

$0.90

540

Hexalobular Screw

000000-008539

Mercedes-Benz

Description: BATTERY FASTENINGDiameter: 5mmStrength / hardness class: 10.9Thread code letter: MThread pitch: 1mm. FASTENING, DC/DC CONVERTERDiameter: 5mmStrength / hardness class: 10.9Thread code letter: MThread pitch: 1mm. Control unit mountDiameter: 5mmStrength / har ...

MSRP $2.50

$2.38

MSRP $2.50

$2.38

550
