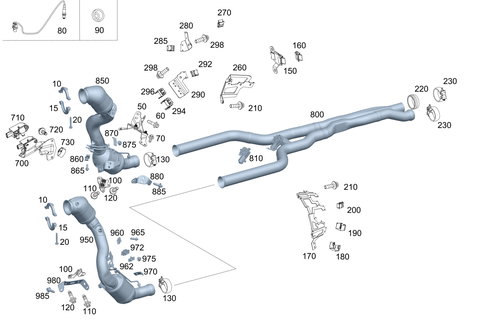

Exhaust System on 8-Cylinder Gasoline Vehicles for 2021 Mercedes-Benz GLC63 AMG S

Description: Exhaust system to exhaust gas turbocharger. Exhaust pipe to turbocharger (upper part). Left and right. Top.

Description: M8 X 55
Diameter: 8mm
Strength / hardness class: 8.8
Thread code letter: M
Thread pitch: 1,25mm. Clamp mount to exhaust system. Clamp mounting. Left and right. Front muffler to manifold. Front exhaust pipe to exhaust manifold m8x55. Catalyst to exhaust manifold. Clamp to pipe elbow.

Description: M8x20-10.9. Strut mounting m 8x20.

Description: Upstream of right catalytic converter. Left,upstream catalytic converter.

Description: Right, downstream of catalytic converter. Left,downstream catalytic converter. Diagnosis sensor, left, after catalytic converter.

Description: For mounting lambda sensor upstream of catalytic converter. Lambda sensor upstream of left and right catalytic converter. For fastening oxygen sensor upstream of catalytic converter.

Description: Left front. To transmission, left.

Description: Catalyst to rear exhaust pipe. Flange connection of left and right rear exhaust line. Rear left exhaust pipe. Exhaust system front to rear muffler. Front exhaust pipe. Left exhaust pipe to right exhaust pipe.

Description: Temperature sensor line mount
Material thickness: 0,4mm. LINE TO UNDERFLOOR
Material thickness: 0,4mm. Fastening, nox sensor and temperature sensor at left and right
material thickness: 0,4mm.

Description: O2 sensor connector.

Description: Flange conn. Exhaust pipe left front on exhaust pipe right front. Left exhaust pipe to right exhaust pipe. From catalyst to main muffler. Exhaust pipe to muffler.

Description: Fastening of o2 sensor line. O2 sensor line mount. Oxygen sensor cable.

Description: Rear lid to hinge lever. Drive to rear pillar. Pipe line to shock absorber leg reinforcement. Strut to front cross member. Bracket to car floor. Cooling pipe to front cross member. Engine hood upper catch to engine hood. Partition panel. Strut to stiffening,front central.

Description: Rear.

Description: Rear.

Description: Rear.

Description: Left front.

Description: Left rear. Left holder.

Description: M8X25
Diameter: 8mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1mm. Bracket to body. Exhaust suspension to rear axle. Battery frame mount. Pedal assembly to firewall. Battery frame to body-in-white. Heater to holder. Holder mount. Exhaust system to left and right rear axle carrier.

Description: Exhaust flap.

Description: Right rear exhaust gas flap. Exhaust gas flap rr rh. Exhaust system, rear. To exhaust line at right. Exhaust line rear rh.

Description: Exhaust flap controller.

Description: Gasoline particulate filter pressure differential.

Description: Front right. Left sensor. Front left.

Description: Particulate sensor. 13.5 MM. Windshield washer reservoir. 13.5 mm. Exhaust gas hose to pressure sensor. 13.5 MM. Exhaust gas line mount. 13.5 MM. Hose line mount. 13.5 MM. To pressure line. 13.5 MM. Left exhaust line. 13.5 mm.

Description: Center.

Description: Right.

Description: Left front. Left exhaust gas line mount. Right exhaust gas line mount OBEN. Differential pressure line.

Description: Left front. Right exhaust gas line mount UNTEN. Pressure line mount, right. To particulate filter.

Description: Front right. Particulate filter Rechts. Right particulate filter holder. To exhaust line at right.

Description: Left.

Description: Left front. Left exhaust gas line mount Mitte. Delivery lines. Pressure line mount, left. Pressure sensor attachment. Attachment delivery line. Pressure line mount, right.

Description: Left front. Left particulate filter holder.
