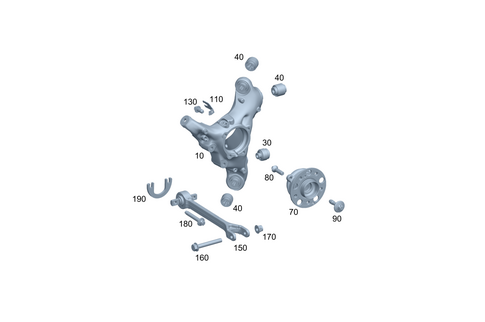

Rear Axle Suspension for 2024 Mercedes-Benz AMG GT 55
No.
Part # / Description / Price
Price
10
Wheel Carrier
Mercedes-Benz
Mercedes-Benz Notes: THE OLD PART MUST NO LONGER BE INSTALLED
Description: Hub/rotor assembly, right, rear axle.
30
Supporting Joint Mercedes-Benz
Mercedes-Benz Description: Thrust arm to left wheel carrier. Strut rod to left wheel carrier. Spring link to left wheel carrier. Bearing, thrust arm, left, wheel carrier, rear axle. Tie rod to left wheel carrier. Rear axle wheel carrier left tie rod bearing.
40
Control Arm Bushing Mercedes-Benz
Mercedes-Benz Description: Camber strut to left wheel carrier. Strut rod / camber strut / thrust arm to hub/rotor assembly at left. Bearing, wheel carrier, camber strut, left, rear axle.
70
Wheel Bearing, Driven Mercedes-Benz
Mercedes-Benz Description: Left with wheel flange. Left rear axle wheel hub.
MSRP $250.00
$238.40
MSRP $250.00
$238.40
80
Hexalobular Head Screw Mercedes-Benz
Mercedes-Benz Description: Left rear wheel bearing to wheel carrier. Left and right wheel bearing to steering knuckle.
MSRP $8.00
$7.52
MSRP $8.00
$7.52
90
Hexalobular Head Screw Mercedes-Benz
Mercedes-Benz Description: Rear axle shaft to left and right wheel flange. M16X1.5X60
Diameter: 16mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1,5mm. Drive shaft to front wheel hub, left. Left side shaft, outboard. Propeller shaft to front wheel hub, left. Rear axle shaft to hub. Drive shaft to left and right rear wheel hub.
Diameter: 16mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1,5mm. Drive shaft to front wheel hub, left. Left side shaft, outboard. Propeller shaft to front wheel hub, left. Rear axle shaft to hub. Drive shaft to left and right rear wheel hub.
MSRP $8.00
$7.52
MSRP $8.00
$7.52
130
Hexalobular Screw Mercedes-Benz
Mercedes-Benz Description: Tube to bottom frame. Sliding angle to sliding roof plate. At lifting bow. At transport bridge. Locking clamp to rear end central part. Handle to rear lid.
MSRP $5.50
$5.12
MSRP $5.50
$5.12
150
MSRP $149.00
$142.40
160
Hexagon Head Bolt Mercedes-Benz
Mercedes-Benz Description: Strut rod to wheel carrier, left and right. M12X1,5X85
Diameter: 12mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1,5mm. Strut to wheel bearing. Brake caliper to left wheel carrier. Left tie rod to wheel carrier. Spring link to left wheel carrier.
Diameter: 12mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1,5mm. Strut to wheel bearing. Brake caliper to left wheel carrier. Left tie rod to wheel carrier. Spring link to left wheel carrier.
180
Hexalobular Screw Mercedes-Benz
Mercedes-Benz Description: Left spring link to integral carrier
Diameter: 10mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1mm. Spring link to left rear axle carrier
Diameter: 10mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1mm.
Diameter: 10mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1mm. Spring link to left rear axle carrier
Diameter: 10mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1mm.
MSRP $3.50
$3.36
MSRP $3.50
$3.36
190
Adjusting Plate Mercedes-Benz
Mercedes-Benz Description: Left spring link to integral carrier. 8 MM. Spring link to left rear axle carrier. 8 MM.
MSRP $13.50
$12.80
MSRP $13.50
$12.80
190
Adjusting Plate Mercedes-Benz
Mercedes-Benz Description: Left spring link to integral carrier. 1 MM. Spring link to left rear axle carrier. 1 MM.
MSRP $10.50
$10.00
MSRP $10.50
$10.00
190
Adjusting Plate Mercedes-Benz
Mercedes-Benz Description: Left spring link to integral carrier. 4 MM. Spring link to left rear axle carrier. 4 MM.
MSRP $9.75
$9.20
MSRP $9.75
$9.20
190
Adjusting Plate Mercedes-Benz
Mercedes-Benz Description: Left spring link to integral carrier. 3 MM. Spring link to left rear axle carrier. 3 MM.
MSRP $12.50
$11.84
MSRP $12.50
$11.84
190
Adjusting Plate Mercedes-Benz
Mercedes-Benz Description: Left spring link to integral carrier. 6MM. Spring link to left rear axle carrier. 6MM.
MSRP $9.75
$9.20
MSRP $9.75
$9.20
190
Adjusting Plate Mercedes-Benz
Mercedes-Benz Description: Left spring link to integral carrier. 2 MM. Spring link to left rear axle carrier. 2 MM.
MSRP $10.50
$10.00
MSRP $10.50
$10.00
190
Adjusting Plate Mercedes-Benz
Mercedes-Benz Description: Left spring link to integral carrier. 5 MM. Spring link to left rear axle carrier. 5 MM.
MSRP $10.00
$9.60
MSRP $10.00
$9.60
290
Window Mercedes-Benz
Mercedes-Benz Description: Trans. Arm to body. Left tie rod to frame 12,2X29,5. Tie rod to rear axle carrier, left and right. Tie rod to rear-axle bracket, left and right. Tie rod to rear subframe left. For adjusting work only. Left tie rod at frame. Spring control arm to rear subframe.
MSRP $9.50
$9.12
MSRP $9.50
$9.12
300
MSRP $13.50
$12.96
350
MSRP $124.00
$118.40
380
Self-Tapping Screw Mercedes-Benz
Mercedes-Benz Description: Camber strut to longitudinal member, left. M10x50. Left tension strut to longitudinal member, rear in direction of travel.
450
MSRP $234.00
$224.00
