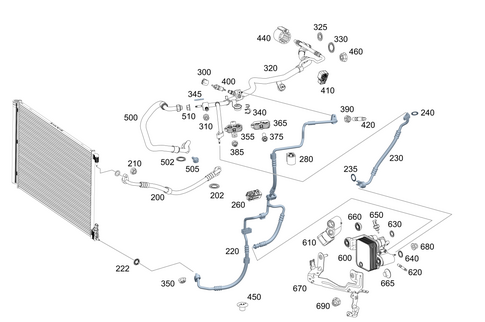

Refrigerant Line Arrangement for 2024 Mercedes-Benz GLE53 AMG
No.
Part # / Description / Price
Price
200
MSRP $72.00
$68.80
200
MSRP $202.00
$193.60
202
O-Ring
Mercedes-Benz
Mercedes-Benz Description: To evaporator. Line to condenser. Condenser and connecting point 1/2". Condenser to compressor. Pipe line to refrigerant compressor. Piping to refrigerant compressor. Between evaporator and expansion valve.
MSRP $8.75
$8.32
MSRP $8.75
$8.32
222
O-Ring Mercedes-Benz
Mercedes-Benz Description: Lower. Condenser and connecting point 3/8". Condenser to connecting point and expansion valve. Pressure line to expansion valve. Refrigerant line to expansion valve and connecting point. Refrigerant line to chiller. Refrigerant line to condenser, expansion valve and refrigerant line . Refrigerant line to shutoff valve. T0 refrigerant line. Refrigerant line to refrigerant line, expansion valve and evaporator.
MSRP $10.50
$10.08
MSRP $10.50
$10.08
260
Line Fastener Mercedes-Benz
Mercedes-Benz Description: Cable fastener M 6. 4.6 X 205 MM. Line to longitudinal member. One passage. Line mounting.
MSRP $3.90
$3.68
MSRP $3.90
$3.68
280
MSRP $3.90
$3.68
300
Screw Cap Mercedes-Benz
Mercedes-Benz Description: Filler connection. High-pressure line. Cover, service connection, high pressure, air conditioning system. Filling connection m10x1. High-pressure side M10X1. To refrigerant line. Valve.
MSRP $6.75
$6.40
MSRP $6.75
$6.40
310
Screw Cap Mercedes-Benz
Mercedes-Benz Description: Filler connection. Filling connection. Low-pressure line. Seal. Suction line. Cover, service connection, low pressure, air conditioning system. Low-pressure side M8X1. To refrigerant line. Valve.
MSRP $12.00
$11.52
MSRP $12.00
$11.52
320
MSRP $208.00
$198.40
320
MSRP $478.00
$457.60
320
MSRP $222.00
$212.80
320
MSRP $182.00
$174.40
330
O-Ring Mercedes-Benz
Mercedes-Benz Description: Intake side. Upper. Expansion valve connection. Line to check valve. Piping to refrigerant compressor. Refrigerant line to connecting point and compressor 3/4". Evaporator. Refrigerant line to expansion valve .
MSRP $5.50
$5.12
MSRP $5.50
$5.12
340
Clamp Mercedes-Benz
Mercedes-Benz Description: Clamp
Inside diameter: 10mm
Outside diameter: 18mm
Material thickness: 2,5mm
Model 1: Schwarz. Refrigerant line mount
Inside diameter: 10mm
Outside diameter: 18mm
Material thickness: 2,5mm
Model 1: Schwarz.
Inside diameter: 10mm
Outside diameter: 18mm
Material thickness: 2,5mm
Model 1: Schwarz. Refrigerant line mount
Inside diameter: 10mm
Outside diameter: 18mm
Material thickness: 2,5mm
Model 1: Schwarz.
MSRP $2.00
$1.92
MSRP $2.00
$1.92
345
Double End Stud Mercedes-Benz
Mercedes-Benz Description: Connecting point. M8. Separation point. Refrigerant line to check valve.
375
Threaded Sleeve Mercedes-Benz
Mercedes-Benz Description: Hose line to suspension strut tower. Bracket mounting. Hydropneumatic spring leg dome. At floor. Clamp to underbody. Hose to firewall damping. To coolant line. Wiring harness. Line fastener to holder.
MSRP $9.50
$8.96
MSRP $9.50
$8.96
400
Valve Element Mercedes-Benz
Mercedes-Benz Description: Filling connection. Filler connection. High-pressure line. Filling valve. Suction line. Service connection, high pressure, air conditioning system. Valve element. To refrigerant line.
MSRP $19.50
$18.40
MSRP $19.50
$18.40
420
Double End Stud Mercedes-Benz
Mercedes-Benz Description: Refrigerant line to refrigerant line. Connecting point mount. Separation point. Fastening, connecting point. Fastening at expansion valve. Shutoff valve to line. Line to evaporator. Refrigerant lines to condenser.
MSRP $7.50
$7.20
MSRP $7.50
$7.20
450
Snap Fastener Mercedes-Benz
Mercedes-Benz Description: Pressure sensor. Line to longitudinal member. Piping mount. Left and right inner longitudinal member. Mounting to connecting member. Refrigerant line to suspension strut tower. Line mount. To cover. Right rear longitudinal member, upper. Line to connecting member.
MSRP $2.50
$2.40
MSRP $2.50
$2.40
500
Refrigerant Line Mercedes-Benz
Mercedes-Benz Description: Inner heat exchanger to compressor.
MSRP $132.00
$126.40
MSRP $132.00
$126.40
500
MSRP $72.00
$68.80
500
MSRP $85.00
$81.60
