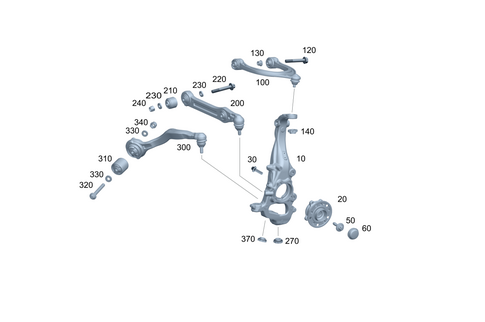

Steering Knuckle and Transverse Control Arm for 2024 Mercedes-Benz S500
No.
Part # / Description / Price
Price
10
MSRP $535.00
$512.00
10
MSRP $490.00
$470.40
20
Wheel Bearing
Mercedes-Benz
Mercedes-Benz Description: Wheel carrier. Left. Rear wheel bearing.
MSRP $1,240.00
$1,184.00
MSRP $1,240.00
$1,184.00
20
Wheel Bearing, Driven Mercedes-Benz
Mercedes-Benz Description: Left with wheel flange. Wheel hub, left, front axle.
MSRP $216.00
$206.40
MSRP $216.00
$206.40
22
Retaining Ring Mercedes-Benz
Mercedes-Benz Description: Wheel bearing to left steering knuckle. 90X3 MM
Inside diameter: 90mm
Material thickness: 3mm. WHEEL BEARING TO WHEEL CARRIER LEFT. 90X3 MM
Inside diameter: 90mm
Material thickness: 3mm.
Inside diameter: 90mm
Material thickness: 3mm. WHEEL BEARING TO WHEEL CARRIER LEFT. 90X3 MM
Inside diameter: 90mm
Material thickness: 3mm.
MSRP $8.75
$8.32
MSRP $8.75
$8.32
27
Clamping Sleeve Mercedes-Benz
Mercedes-Benz Description: Wheel hub, left. Centering brake disc. In left wheel flange. Brake disc to wheel hub.
30
Hexalobular Head Screw Mercedes-Benz
Mercedes-Benz Description: M12X57,5
Diameter: 12mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1,5mm. To left steering knuckle, front axle. Wheel bearing left rear. Drive shaft to front wheel hub, left. Wheel bearing to steering knuckle at left M12X57,5.
Diameter: 12mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1,5mm. To left steering knuckle, front axle. Wheel bearing left rear. Drive shaft to front wheel hub, left. Wheel bearing to steering knuckle at left M12X57,5.
MSRP $6.50
$6.24
MSRP $6.50
$6.24
50
Nut Mercedes-Benz
Mercedes-Benz Description: Front wheel hub to steering knuckle. Drive shaft to front wheel hub, left. Rear axle shaft to wheel flange, left. Rear axle to hub, left.
MSRP $36.00
$34.40
MSRP $36.00
$34.40
50
Hexalobular Head Screw Mercedes-Benz
Mercedes-Benz Description: Left side shaft, outboardDiameter: 14mmStrength / hardness class: 10.9Thread code letter: MThread pitch: 1,5mm. Rear axle shaft to left and right wheel flangeDiameter: 14mmStrength / hardness class: 10.9Thread code letter: MThread pitch: 1,5mm. Bolt, rear ...
MSRP $5.50
$5.28
MSRP $5.50
$5.28
60
Locking Cap Mercedes-Benz
Mercedes-Benz Description: Front wheel hub, outer. Wheel hub, left and right. To left steering knuckle, front axle.
MSRP $5.75
$5.44
MSRP $5.75
$5.44
100
MSRP $630.00
$604.80
100
MSRP $580.00
$556.80
120
Hex Head Screw W Flange Mercedes-Benz
Mercedes-Benz Description: Transverse control arm to left body. M12x1,5x110.
MSRP $23.50
$22.40
MSRP $23.50
$22.40
120
Hex Head Screw W Flange Mercedes-Benz
Mercedes-Benz Description: Transverse control arm to left body. M12x1,5x107.
140
Hex Nut W Flange + Piece Mercedes-Benz
Mercedes-Benz Description: M14X1,5
Diameter: 14mm
Strength / hardness class: 10
Thread code letter: M
Thread pitch: 1,5mm. Arm to steer. Knuck. Transverse control arm to left body. Nut, ball joint, transverse control arm, left, upper, front axle.
Diameter: 14mm
Strength / hardness class: 10
Thread code letter: M
Thread pitch: 1,5mm. Arm to steer. Knuck. Transverse control arm to left body. Nut, ball joint, transverse control arm, left, upper, front axle.
MSRP $3.70
$3.52
MSRP $3.70
$3.52
200
MSRP $404.00
$387.20
210
Spring Link Bushing Mercedes-Benz
Mercedes-Benz Notes: NOTE FURTHER INFORMATION IN WIS
Description: Left, adjustable bearing.
MSRP $230.00
$219.20
MSRP $230.00
$219.20
220
Hexagon Head Bolt Mercedes-Benz
Mercedes-Benz Description: Left spring link to integral carrier. M16X1.5X110
Diameter: 16mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1,5mm. Spring link to left wheel carrier.
Diameter: 16mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1,5mm. Spring link to left wheel carrier.
220
Hexalobular Screw Mercedes-Benz
Mercedes-Benz Description: Left spring link to integral carrier. M14X1,5X130
Diameter: 14mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1,5mm.
Diameter: 14mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1,5mm.
MSRP $22.50
$21.60
MSRP $22.50
$21.60
230
Shim Mercedes-Benz
Mercedes-Benz Description: Spring link to frame-type int. Supp. Left spring link to integral carrier.
230
Washer, Plane Parallel Mercedes-Benz
Mercedes-Benz Description: Spring link to integral carrier, left.
MSRP $4.50
$4.32
MSRP $4.50
$4.32
240
Hexagon Nut Mercedes-Benz
Mercedes-Benz Description: M14X1.5
Diameter: 14mm
Strength / hardness class: 10
Thread code letter: M
Thread pitch: 1,5mm
Width across flats: 21mm. Strut rod to integral carrier. Cross strut to integral carrier. Transverse control arm to left steering knuckle. Torque strut to frame-type int. Supp.. Lower transverse control arm to left wheel carrier.
Diameter: 14mm
Strength / hardness class: 10
Thread code letter: M
Thread pitch: 1,5mm
Width across flats: 21mm. Strut rod to integral carrier. Cross strut to integral carrier. Transverse control arm to left steering knuckle. Torque strut to frame-type int. Supp.. Lower transverse control arm to left wheel carrier.
MSRP $7.00
$6.56
MSRP $7.00
$6.56
240
Nut Mercedes-Benz
Mercedes-Benz Description: Shock absorber to spring control arm. M16
Diameter: 16mm
Strength / hardness class: 10
Thread code letter: M
Thread pitch: 1,5mm
Outside diameter: 34,5mm
Width across flats: 24mm. Spring link to steering knuckle, left. Shock absorber mount, lower left. Transverse control arm to frame. Thrust arm to left steering knuckle. Left spring link to integral carrier. Spring link to left wheel carrier. Suspension strut to left and right spring link.
Diameter: 16mm
Strength / hardness class: 10
Thread code letter: M
Thread pitch: 1,5mm
Outside diameter: 34,5mm
Width across flats: 24mm. Spring link to steering knuckle, left. Shock absorber mount, lower left. Transverse control arm to frame. Thrust arm to left steering knuckle. Left spring link to integral carrier. Spring link to left wheel carrier. Suspension strut to left and right spring link.
270
Bihexagonal Nut W Flange Mercedes-Benz
Mercedes-Benz Description: Spring link to steering knuckle, left.
MSRP $7.50
$7.04
MSRP $7.50
$7.04
300
MSRP $422.00
$404.80
300
MSRP $368.00
$352.00
300
MSRP $368.00
$352.00
300
MSRP $422.00
$404.80
310
Hydromount Mercedes-Benz
Mercedes-Benz Notes: Adjustment bearing
Description: Torsion bearing, strut rod/trailing arm, left, front axle. Left, negative caster adjustment. Tension rod left.
310
Hydromount Mercedes-Benz
Mercedes-Benz Notes: Adjustment bearing
Description: Torsion bearing, strut rod/trailing arm, left, front axle. Left, positive caster adjustment. Tension rod left.
310
Hydromount Mercedes-Benz
Mercedes-Benz Notes: Adjustment bearing
Description: Torsion bearing, strut rod/trailing arm, left, front axle. Left, negative caster adjustment. Tension rod left.
MSRP $260.00
$249.60
MSRP $260.00
$249.60
320
Hexagon Head Bolt Mercedes-Benz
Mercedes-Benz Description: Left strut rod to integral carrier. M16X1.5X130
Diameter: 16mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1,5mm.
Diameter: 16mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1,5mm.
