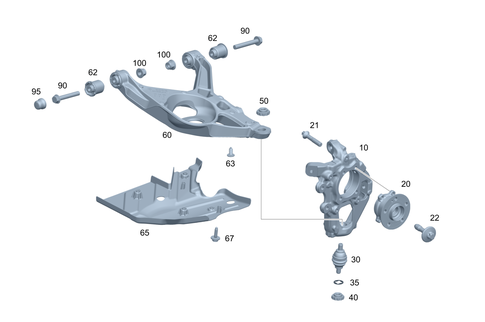

Rear Axle Mount for 2025 Mercedes-Benz GLE450e
No.
Part # / Description / Price
Price
10
MSRP $900.00
$864.00
20
MSRP $494.00
$473.60
21
Hexalobular Head Screw
Mercedes-Benz
Mercedes-Benz Description: M12X57,5
Diameter: 12mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1,5mm. To left steering knuckle, front axle. Wheel bearing left rear. Drive shaft to front wheel hub, left. Wheel bearing to steering knuckle at left M12X57,5.
Diameter: 12mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1,5mm. To left steering knuckle, front axle. Wheel bearing left rear. Drive shaft to front wheel hub, left. Wheel bearing to steering knuckle at left M12X57,5.
MSRP $6.50
$6.24
MSRP $6.50
$6.24
22
Hexalobular Head Screw Mercedes-Benz
Mercedes-Benz Description: Rear axle shaft to left and right wheel flange. M16X1.5X60
Diameter: 16mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1,5mm. Drive shaft to front wheel hub, left. Left side shaft, outboard. Propeller shaft to front wheel hub, left. Rear axle shaft to hub. Drive shaft to left and right rear wheel hub.
Diameter: 16mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1,5mm. Drive shaft to front wheel hub, left. Left side shaft, outboard. Propeller shaft to front wheel hub, left. Rear axle shaft to hub. Drive shaft to left and right rear wheel hub.
MSRP $8.00
$7.52
MSRP $8.00
$7.52
30
MSRP $172.00
$164.80
35
MSRP $4.00
$3.84
40
Bihexagonal Nut W Flange Mercedes-Benz
Mercedes-Benz Description: Supporting joint to left wheel carrier. Supporting joint to steering knuckle left. Spring link to steering knuckle, left. Spring control arm to steering knuckle, left.
MSRP $10.00
$9.60
MSRP $10.00
$9.60
60
MSRP $730.00
$697.60
60
MSRP $630.00
$604.80
65
MSRP $14.00
$13.20
65
MSRP $15.00
$14.40
67
Hexagon Head Screw Mercedes-Benz
Mercedes-Benz Description: Upper air regulation system mount. M6x24.
MSRP $3.20
$3.04
MSRP $3.20
$3.04
90
Hexagon Head Bolt Mercedes-Benz
Mercedes-Benz Description: Left transverse control arm. to integral carrier. M14X1,5X98
Diameter: 14mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1,5mm.
Diameter: 14mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1,5mm.
MSRP $14.50
$13.60
MSRP $14.50
$13.60
95
Protective Cap Mercedes-Benz
Mercedes-Benz Description: Bottom left transverse control arm at frame-type integral support. Left lower transverse control arm to integral carrier.
MSRP $3.70
$3.52
MSRP $3.70
$3.52
110
MSRP $322.00
$308.80
110
MSRP $394.00
$377.60
125
Window Mercedes-Benz
Mercedes-Benz Description: Strut rod to left wheel carrier. Camber struts to wheel bearing. Strut rod to wheel carrier, lh.
MSRP $8.00
$7.52
MSRP $8.00
$7.52
140
Hexagon Head Bolt Mercedes-Benz
Mercedes-Benz Description: Strut rod to integral carrier, left. M12X65
Diameter: 12mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1,5mm. Torsion bar to rod. Tie rod to rear subframe.
Diameter: 12mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1,5mm. Torsion bar to rod. Tie rod to rear subframe.
MSRP $3.70
$3.52
MSRP $3.70
$3.52
160
MSRP $232.00
$222.40
160
MSRP $212.00
$203.20
180
Eccentric Screw Mercedes-Benz
Mercedes-Benz Description: Camber strut to left rear axle carrier. Camber struts to rear subframe.
MSRP $15.50
$14.80
MSRP $15.50
$14.80
185
Window Mercedes-Benz
Mercedes-Benz Description: Tie rod to rear axle carrierDiameter: 12,1mmInside diameter: 12,1mmOutside diameter: 31mmMaterial thickness: 3mm. CAMBER STRUTS TO REAR SUBFRAMEDiameter: 12,1mmInside diameter: 12,1mmOutside diameter: 31mmMaterial thickness: 3mm. TIE ROD TO REAR SUBFRAMEDi ...
MSRP $0.30
$0.27
MSRP $0.30
$0.27
220
MSRP $174.00
$166.40
220
MSRP $124.00
$118.40
230
Eccentric Screw Mercedes-Benz
Mercedes-Benz Description: Tie rod to rear-axle bracket, left and right. M12x1,5,78. Tie rod to rear subframe left. Tie rod to left rear axle carrier.
MSRP $12.00
$11.20
MSRP $12.00
$11.20
