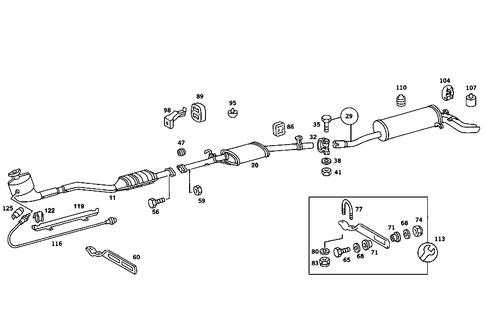

Exhaust System Used on Eight-Cylinder Gasoline Vehicles for 1985 Mercedes-Benz 380SE
No.
Part # / Description / Price
Price
5
Exhaust Pipe
Mercedes-Benz
Mercedes-Benz Notes: NOT FOR R.S.A.
INAPPLICABLE TO VEHICLES EQUIPPED WITH CATALYTIC CONVERTER
INAPPLICABLE TO VEHICLES EQUIPPED WITH CATALYTIC CONVERTER
Description: Front left.
8
Exhaust Pipe Mercedes-Benz
Mercedes-Benz Notes: NOT FOR R.S.A.
INAPPLICABLE TO VEHICLES EQUIPPED WITH CATALYTIC CONVERTER
INAPPLICABLE TO VEHICLES EQUIPPED WITH CATALYTIC CONVERTER
Description: Front right.
11
Exhaust Pipe Mercedes-Benz
Mercedes-Benz Notes: ONLY APPLICABLE TO VEHICLES EQUIPPED WITH CATALYTIC CONVERTER
Description: Front.
17
MSRP $50.00
$47.90
20
Exhaust Muffler With Pipe Mercedes-Benz
Mercedes-Benz Notes: NOT FOR R.S.A.
INAPPLICABLE TO VEHICLES EQUIPPED WITH CATALYTIC CONVERTER
INAPPLICABLE TO VEHICLES EQUIPPED WITH CATALYTIC CONVERTER
Description: Central.
23
Exhaust Muffler With Pipe Mercedes-Benz
Mercedes-Benz Notes: ONLY APPLICABLE TO VEHICLES EQUIPPED WITH CATALYTIC CONVERTER
Description: Central.
29
Exhaust Muffler With Pipe Mercedes-Benz
Mercedes-Benz Notes: ONLY APPLICABLE TO VEHICLES EQUIPPED WITH CATALYTIC CONVERTER
Description: Rear.
32
Clamp Mercedes-Benz
Mercedes-Benz Description: Front exhaust pipe to central exhaust pipe. Central rear exhaust pipe to rear exhaust pipe. Front exhaust pipe to rear exhaust pipe.
MSRP $6.00
$5.62
MSRP $6.00
$5.62
35
Screw Mercedes-Benz
Mercedes-Benz Description: Rod to spring control arm. Torsion bar to control arm. Front exhaust pipe to central exhaust pipe. Front exhaust pipe to exhaust manifold.
35
Hexagon Head Bolt Mercedes-Benz
Mercedes-Benz Description: Window runs and drip mouldings to bottom of doors. Left exhaust pipe to right exhaust pipe.
MSRP $2.90
$2.72
MSRP $2.90
$2.72
41
Hexagon Nut Mercedes-Benz
Mercedes-Benz Description: M8-10
Diameter: 8mm
Strength / hardness class: 10
Thread code letter: M
Thread pitch: 1,25mm
Width across flats: 13mm. Cable to starting motor,terminal 30. Horn to bracket.
Diameter: 8mm
Strength / hardness class: 10
Thread code letter: M
Thread pitch: 1,25mm
Width across flats: 13mm. Cable to starting motor,terminal 30. Horn to bracket.
MSRP $3.00
$2.88
MSRP $3.00
$2.88
44
Flange Mercedes-Benz
Mercedes-Benz Description: Front exhaust pipe to muffler with central pipe. Front exhaust pipe to central exhaust pipe sl 60 amg. Front exhaust line.
MSRP $17.50
$16.80
MSRP $17.50
$16.80
47
Sealing Ring Mercedes-Benz
Mercedes-Benz Description: Front exhaust pipe to central exhaust pipe sl 60 amg.
MSRP $10.50
$9.92
MSRP $10.50
$9.92
50
Sealing Ring Mercedes-Benz
Mercedes-Benz Description: Front exhaust pipe to central exhaust pipe. Front left exhaust pipe to front exhaust line. Left exhaust pipe to right exhaust pipe. Front exhaust pipe to rear exhaust pipe.
MSRP $19.50
$18.40
MSRP $19.50
$18.40
56
Hexagon Head Bolt Mercedes-Benz
Mercedes-Benz Description: M8X60
Diameter: 8mm
Strength / hardness class: 8.8
Thread code letter: M
Thread pitch: 1mm. Bracket to exhaust pipe. Front exhaust pipe to exhaust manifold m8x60. Front exhaust pipe to muffler with central pipe. Front exhaust pipe to sliding fit, center. Front right exhaust pipe to front exhaust line. Front exhaust pipe to rear exhaust pipe.
Diameter: 8mm
Strength / hardness class: 8.8
Thread code letter: M
Thread pitch: 1mm. Bracket to exhaust pipe. Front exhaust pipe to exhaust manifold m8x60. Front exhaust pipe to muffler with central pipe. Front exhaust pipe to sliding fit, center. Front right exhaust pipe to front exhaust line. Front exhaust pipe to rear exhaust pipe.
MSRP $4.50
$4.32
MSRP $4.50
$4.32
59
Nut Mercedes-Benz
Mercedes-Benz Description: Front left and right. At clutch bell. Front exhaust line. Exhaust pipe front left to exhaust pipe front right. Exhaust pipe to exhaust manifold. Right muffler to left muffler.
MSRP $3.90
$3.68
MSRP $3.90
$3.68
62
Holder Mercedes-Benz
Mercedes-Benz Notes: INAPPLICABLE TO VEHICLES EQUIPPED WITH CATALYTIC CONVERTER
Description: Front exhaust pipe to transmission.
65
Tensioning Bracket Mercedes-Benz
Mercedes-Benz Notes: INAPPLICABLE TO VEHICLES EQUIPPED WITH CATALYTIC CONVERTER
Description: Front exhaust pipe to muffler.
MSRP $7.50
$7.20
MSRP $7.50
$7.20
68
Disk Spring Mercedes-Benz
Mercedes-Benz Notes: INAPPLICABLE TO VEHICLES EQUIPPED WITH CATALYTIC CONVERTER
Description: Front exhaust pipe to bracket. At clutch bell.
MSRP $2.40
$2.24
MSRP $2.40
$2.24
74
Elastomer Washer Mercedes-Benz
Mercedes-Benz Description: Bracket to transmission. Front exhaust pipe to mounting plate. Front exhaust pipe to transmission. Bracket to mounting plate. Transmission case. For generator at support. For support, fixing plate, at clutch housing.
MSRP $5.50
$5.12
MSRP $5.50
$5.12
77
Nut Mercedes-Benz
Mercedes-Benz Description: Bracket to transmission. Bracket to mounting plate. Front exhaust pipe to transmission.
MSRP $6.50
$6.24
MSRP $6.50
$6.24
80
MSRP $2.70
$2.56
80
MSRP $1.70
$1.57
80
Hexagon Head Bolt Mercedes-Benz
Mercedes-Benz Description: M8x25-8.8. Fuel tank to console. Bracket to mounting plate or to transmission. Bracket to bumper. Shackle to torsion bar. Intermediate bearing to frame.
MSRP $4.20
$4.00
MSRP $4.20
$4.00
83
Washer Mercedes-Benz
Mercedes-Benz Description: Bracket to transmission. Bracket to mounting plate. Front exhaust pipe to mounting plate. Front exhaust pipe to transmission.
MSRP $2.50
$2.40
MSRP $2.50
$2.40
86
Damping Insert Mercedes-Benz
Mercedes-Benz Description: Central suspension. Propeller shaft bearing.
MSRP $5.50
$5.28
MSRP $5.50
$5.28
89
Rubber Ring Mercedes-Benz
Mercedes-Benz Notes: ONLY APPLICABLE TO VEHICLES EQUIPPED WITH CATALYTIC CONVERTER
Description: In front of central muffler. Catalyst fixture. Front exhaust pipe to bracket.
MSRP $5.75
$5.44
MSRP $5.75
$5.44
92
Buffer Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
UP TO IDENT NO. A 004265
UP TO IDENT NO. A 004265
Description: In front of central muffler.
95
Rubber Bumper Mercedes-Benz
Mercedes-Benz Description: Central suspension. In front of central muffler. In front of posterior muffler. Behind posterior muffler. Stop above posterior muffler to bracket on cross member. Stop above posterior muffler to side member. Exhaust pipe suspension to tunnel end.
MSRP $16.50
$15.52
MSRP $16.50
$15.52
98
Washer Mercedes-Benz
Mercedes-Benz Notes: UP TO IDENT NO. A 004265
Description: Cable to terminal b+. Positive cable to battery.
MSRP $0.90
$0.80
MSRP $0.90
$0.80
101
Hexagon Nut Mercedes-Benz
Mercedes-Benz Description: Steering column jacket tube to body. Master cylinder to pedal assembly. Brake power regulator to bracket. Bracket to engine. Cable to ignition coil. Fuel lines under rear seat. Hydraulic unit to bracket. Wiper motor to fire wall.
MSRP $12.50
$11.84
MSRP $12.50
$11.84
104
104
Elastomer Suspension Mercedes-Benz
Mercedes-Benz Description: Left and right. Central exhaust pipe. Main muffler rear suspension. Central suspension.
107
Rubber Bumper Mercedes-Benz
Mercedes-Benz Description: In front of central muffler. In front of,and behind,posterior muffler. Cross member below rear seat.
MSRP $9.25
$8.80
MSRP $9.25
$8.80
110
Rubber Bumper Mercedes-Benz
Mercedes-Benz Description: Rear muffler suspension. Stop above posterior muffler to bracket on cross member. Behind posterior muffler. Front exhaust pipe suspension. Central suspension. Stop above posterior muffler to side member. In front of central muffler. From connection fitting to cab rear panel.
MSRP $4.90
$4.64
MSRP $4.90
$4.64
113
Suspension Mercedes-Benz
Mercedes-Benz Notes: EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO CHASSIS
021 010594
022,023 040747
032,033 019698
036,037 012688
Description: Front exhaust pipe suspension.
MSRP $83.00
$79.20
MSRP $83.00
$79.20
113
Repair Kit Mercedes-Benz
Mercedes-Benz Notes: EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO CHASSIS
021 010594
022,023 040747
032,033 019698
036,037 012688
116
Lambda Sensor Mercedes-Benz
Mercedes-Benz Notes: ONLY APPLICABLE TO VEHICLES EQUIPPED WITH CATALYTIC CONVERTER
Description: Oxygen sensor.
119
Bracket Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
ONLY APPLICABLE TO VEHICLES EQUIPPED WITH CATALYTIC CONVERTER
ONLY APPLICABLE TO VEHICLES EQUIPPED WITH CATALYTIC CONVERTER
Description: Oxygen sensor. Bracket to oil pan.
122
Clamp Mercedes-Benz
Mercedes-Benz Notes: ONLY APPLICABLE TO VEHICLES EQUIPPED WITH CATALYTIC CONVERTER
Description: Electric cable to front seat cushion. Control unit to bracket. Temperature sensor. From plug connection to wiper motor. Electric cable to seat cushion frame. Bracket to oil pan.
No.
Part # / Description / Price
Price
56
Hexagon Head Bolt Mercedes-Benz
Mercedes-Benz Description: MASTER CYLINDER TO FIRE WALLDiameter: 8mmStrength / hardness class: 8.8Thread code letter: MThread pitch: 1mm. EXHAUST PIPE TO EXHAUST MANIFOLDDiameter: 8mmStrength / hardness class: 8.8Thread code letter: MThread pitch: 1mm. STEERING COLUMN JACKET TUBE TO ...
MSRP $5.00
$4.80
MSRP $5.00
$4.80
110
MSRP $6.00
$5.76
113
MSRP $83.00
$79.20
