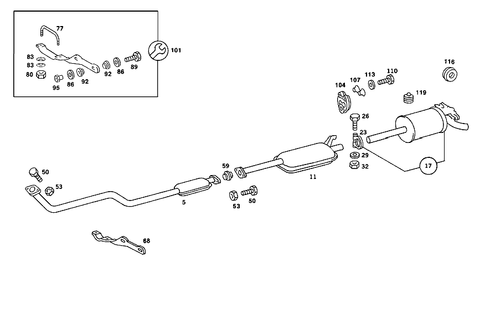

Exhaust System on Diesel Vehicles for 1988 Mercedes-Benz 190D
No.
Part # / Description / Price
Price
32
Clamp
Mercedes-Benz
Mercedes-Benz Description: Front exhaust pipe to central exhaust pipe. Central rear exhaust pipe to rear exhaust pipe. Front exhaust pipe to rear exhaust pipe.
MSRP $6.00
$5.62
MSRP $6.00
$5.62
35
Hexagon Head Bolt Mercedes-Benz
Mercedes-Benz Description: M8X60
Diameter: 8mm
Strength / hardness class: 8.8
Thread code letter: M
Thread pitch: 1mm. Bracket to exhaust pipe. Front exhaust pipe to exhaust manifold m8x60. Front exhaust pipe to muffler with central pipe. Front exhaust pipe to sliding fit, center. Front right exhaust pipe to front exhaust line. Front exhaust pipe to rear exhaust pipe.
Diameter: 8mm
Strength / hardness class: 8.8
Thread code letter: M
Thread pitch: 1mm. Bracket to exhaust pipe. Front exhaust pipe to exhaust manifold m8x60. Front exhaust pipe to muffler with central pipe. Front exhaust pipe to sliding fit, center. Front right exhaust pipe to front exhaust line. Front exhaust pipe to rear exhaust pipe.
MSRP $4.50
$4.32
MSRP $4.50
$4.32
41
Hexagon Nut Mercedes-Benz
Mercedes-Benz Description: M8-10
Diameter: 8mm
Strength / hardness class: 10
Thread code letter: M
Thread pitch: 1,25mm
Width across flats: 13mm. Cable to starting motor,terminal 30. Horn to bracket.
Diameter: 8mm
Strength / hardness class: 10
Thread code letter: M
Thread pitch: 1,25mm
Width across flats: 13mm. Cable to starting motor,terminal 30. Horn to bracket.
MSRP $3.00
$2.88
MSRP $3.00
$2.88
44
Screw Mercedes-Benz
Mercedes-Benz Description: Rod to spring control arm. Torsion bar to control arm. Front exhaust pipe to central exhaust pipe. Front exhaust pipe to exhaust manifold.
50
Nut Mercedes-Benz
Mercedes-Benz Description: Front left and right. At clutch bell. Front exhaust line. Exhaust pipe front left to exhaust pipe front right. Exhaust pipe to exhaust manifold. Right muffler to left muffler.
MSRP $3.90
$3.68
MSRP $3.90
$3.68
53
Sealing Ring Mercedes-Benz
Mercedes-Benz Description: Front exhaust pipe to central exhaust pipe. Front left exhaust pipe to front exhaust line. Left exhaust pipe to right exhaust pipe. Front exhaust pipe to rear exhaust pipe.
MSRP $19.50
$18.40
MSRP $19.50
$18.40
68
MSRP $7.50
$7.20
77
Disk Spring Mercedes-Benz
Mercedes-Benz Description: Front exhaust pipe to bracket. At clutch bell.
MSRP $2.40
$2.24
MSRP $2.40
$2.24
80
Washer Mercedes-Benz
Mercedes-Benz Description: Bracket to transmission. Bracket to mounting plate. Front exhaust pipe to mounting plate. Front exhaust pipe to transmission.
MSRP $2.50
$2.40
MSRP $2.50
$2.40
83
MSRP $1.70
$1.57
86
Elastomer Washer Mercedes-Benz
Mercedes-Benz Description: Bracket to transmission. Front exhaust pipe to mounting plate. Front exhaust pipe to transmission. Bracket to mounting plate. Transmission case. For generator at support. For support, fixing plate, at clutch housing.
MSRP $5.50
$5.12
MSRP $5.50
$5.12
89
Nut Mercedes-Benz
Mercedes-Benz Description: Bracket to transmission. Bracket to mounting plate. Front exhaust pipe to transmission.
MSRP $6.50
$6.24
MSRP $6.50
$6.24
92
MSRP $83.00
$79.20
98
MSRP $5.00
$4.80
101
MSRP $6.00
$5.76
104
Hexagon Head Bolt Mercedes-Benz
Mercedes-Benz Description: Main muffler suspension. M8x16. Central muffler suspension. Bracket on rear axle m 8x16.
MSRP $3.20
$3.04
MSRP $3.20
$3.04
107
MSRP $3.00
$2.88
110
Rubber Ring Mercedes-Benz
Mercedes-Benz Description: Rear muffler suspension. Exhaust pipe suspension. For suspension at tail. Main muffler suspension.
MSRP $4.50
$4.32
MSRP $4.50
$4.32
No.
Part # / Description / Price
Price
5
Exhaust Pipe Mercedes-Benz
Mercedes-Benz Notes: INAPPLICABLE TO VEHICLES EQUIPPED WITH CATALYTIC CONVERTER
Description: Front.
5
Exhaust Pipe 1 Mercedes-Benz
Mercedes-Benz Notes: ONLY APPLICABLE TO VEHICLES EQUIPPED WITH CATALYTIC CONVERTER
Description: Front.
26
Hexagon Head Bolt Mercedes-Benz
Mercedes-Benz Description: M8X60
Diameter: 8mm
Strength / hardness class: 8.8
Thread code letter: M
Thread pitch: 1mm. Bracket to exhaust pipe. Front exhaust pipe to exhaust manifold m8x60. Front exhaust pipe to muffler with central pipe. Front exhaust pipe to sliding fit, center. Front right exhaust pipe to front exhaust line. Front exhaust pipe to rear exhaust pipe.
Diameter: 8mm
Strength / hardness class: 8.8
Thread code letter: M
Thread pitch: 1mm. Bracket to exhaust pipe. Front exhaust pipe to exhaust manifold m8x60. Front exhaust pipe to muffler with central pipe. Front exhaust pipe to sliding fit, center. Front right exhaust pipe to front exhaust line. Front exhaust pipe to rear exhaust pipe.
MSRP $4.50
$4.32
MSRP $4.50
$4.32
50
Hexagon Head Bolt Mercedes-Benz
Mercedes-Benz Description: Window runs and drip mouldings to bottom of doors. Left exhaust pipe to right exhaust pipe.
MSRP $2.90
$2.72
MSRP $2.90
$2.72
68
Holder Mercedes-Benz
Mercedes-Benz Description: Front exhaust pipe to transmission. Used with five-speed transmission.
89
MSRP $1.70
$1.57
113
MSRP $3.00
$2.88
119
Rubber Bumper Mercedes-Benz
Mercedes-Benz Description: Rear muffler suspension. Stop above posterior muffler to bracket on cross member. Behind posterior muffler. Front exhaust pipe suspension. Central suspension. Stop above posterior muffler to side member. In front of central muffler. From connection fitting to cab rear panel.
MSRP $4.90
$4.64
MSRP $4.90
$4.64
1 This price excludes a refundable manufacturer's core charge. Add the part to your cart to see the core charge.
No.
Part # / Description / Price
Price
89
MSRP $2.70
$2.56
No.
Part # / Description / Price
Price
32
Clamp Mercedes-Benz
Mercedes-Benz Description: Front exhaust pipe to central exhaust pipe. Central rear exhaust pipe to rear exhaust pipe. Front exhaust pipe to rear exhaust pipe.
MSRP $6.00
$5.62
MSRP $6.00
$5.62
