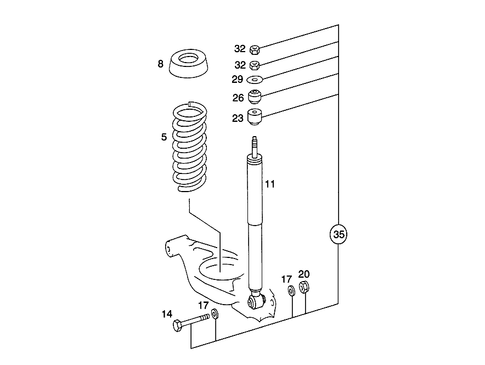

Springs and Suspension, Rear for 1988 Mercedes-Benz 190D
No.
Part # / Description / Price
Price
N/A
N/A
Shock Absorber
Mercedes-Benz
Mercedes-Benz Notes: EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO CHASSIS
A 552116 F 708504
5
Rear Spring Mercedes-Benz
Mercedes-Benz Notes: Up to ident. no.:
A 469171
F 567278
TO ASCERTAIN THE REAR SPRINGS,PLEASE ADD UP IN THE CHART BELOW THE NUMBERS OF POINTS OF THE RESPECTIVE MODEL AND
OF THE SPECIAL VERSIONS INSTALLED
==============================================================================================================================
MODEL POINTS CODE SPECIAL EQUIPMENT POINTS
201.023 10 550 HITCHING MECHANISM 5
201.024 13 411,412 SLIDING ROOF 3
201.028 15 211 AUTO. LIMITED-SLIP DIFFERENTIAL 3
201.029 14 420 AUTOMATIC TRANSMISSION 1
201.122 10 430 REAR SEAT BENCH HEADRESTS 1
201.126 11
201.128 16
.
==============================================================================================================================
TABLE REAR SPRING - RUBBER BOOT NORMAL SPRINGS
==============================================================================================================================
SUM OF POINTS REAR SPRING BOOT: BOOT:
WITH BLUE REAR SPRING W/ RED REAR SPRING
-17 201 324 25 04 201 325 09 44 201 325 10 44
18-23 201 324 25 04 201 325 10 44 201 325 11 44
24- 201 324 25 04 201 325 11 44
.
==============================================================================================================================
CHART OF REAR SPRING RUBBER PADS W/HARDER SPRING SUSPENSION CODE 482
==============================================================================================================================
TOTAL OF POINTS REAR SPRING PAD PAD
REAR SPRING BLUE REAR SPRING RED
-18 201 324 26 04 201 325 09 44 201 325 10 44
19-25 201 324 26 04 201 325 10 44 201 325 11 44
26- 201 324 26 04 201 325 11 44
==============================================================================================================================
Description: As required.
5
Rear Spring Mercedes-Benz
Mercedes-Benz Notes: TO ASCERTAIN THE REAR SPRINGS,PLEASE ADD UP IN THE CHART BELOW THE NUMBERS OF POINTS OF THE RESPECTIVE MODEL AND
OF THE SPECIAL VERSIONS INSTALLED
==============================================================================================================================
MODEL POINTS CODE SPECIAL EQUIPMENT POINTS
201.018 12 550 HITCHING MECHANISM 5
201.023 12 411,412 SLIDING ROOF 3
201.024 13 211 AUTO. LIMITED-SLIP DIFFERENTIAL 3
201.028 15 420 AUTOMATIC TRANSMISSION 1
201.029 17 430 REAR SEAT BENCH HEADRESTS 1
201.122 10
201.126 15
201.128 19
.
==============================================================================================================================
CHART OF REAR SPRING RUBBER PADS "SPORTS UNDERCARRIAGE" CODE 650/651/950/951
==============================================================================================================================
TOTAL OF POINTS REAR SPRING PAD PAD
REAR SPRING BLUE REAR SPRING RED
-25 201 324 39 04 201 325 09 44 201 325 10 44
26-34 201 324 39 04 201 325 10 44 201 325 11 44
35- 201 324 39 04 201 325 11 44
==============================================================================================================================
Description: As required.
5
Rear Spring Mercedes-Benz
Mercedes-Benz Notes: As of ident. no.:
A 469172
F 567279
G 000001
TO ASCERTAIN THE REAR SPRINGS,PLEASE ADD UP IN THE CHART BELOW THE NUMBERS OF POINTS OF THE RESPECTIVE MODEL AND
OF THE SPECIAL VERSIONS INSTALLED
==============================================================================================================================
MODEL POINTS CODE SPECIAL EQUIPMENT POINTS
201.018 12 550 HITCHING MECHANISM 5
201.023 12 411,412 SLIDING ROOF 3
201.024 13 211 AUTO. LIMITED-SLIP DIFFERENTIAL 3
201.028 15 420 AUTOMATIC TRANSMISSION 1
201.029 17 430 REAR SEAT BENCH HEADRESTS 1
201.122 10
201.126 15
201.128 19
.
==============================================================================================================================
TABLE REAR SPRING - RUBBER BOOT NORMAL SPRINGS
==============================================================================================================================
SUM OF POINTS REAR SPRING BOOT: BOOT:
WITH BLUE REAR SPRING W/ RED REAR SPRING
-19 201 324 36 04 201 325 09 44 201 325 10 44
20-23 201 324 36 04 201 325 10 44 201 325 11 44
24-31 201 324 25 04 201 325 09 44 201 325 10 44
32- 201 324 25 04 201 325 10 44 201 325 11 44
==============================================================================================================================
CHART OF REAR SPRING RUBBER PADS W/HARDER SPRING SUSPENSION CODE 482
==============================================================================================================================
TOTAL OF POINTS REAR SPRING PAD PAD
REAR SPRING BLUE REAR SPRING RED
-18 201 324 26 04 201 325 09 44 201 325 10 44
19-25 201 324 26 04 201 325 10 44 201 325 11 44
26- 201 324 26 04 201 325 11 44
==============================================================================================================================
Description: As required.
8
MSRP $9.50
$9.12
8
Rubber Bumper Mercedes-Benz
Mercedes-Benz Description: As required. Number of burls: 1 (8 mm ). Number of burls: 1 (8mm).
MSRP $7.00
$6.72
MSRP $7.00
$6.72
8
Rubber Bumper Mercedes-Benz
Mercedes-Benz Description: As required. Number of burls: 3 (18 mm).
MSRP $11.50
$10.88
MSRP $11.50
$10.88
11
Shock Absorber Mercedes-Benz
Mercedes-Benz Notes: FASTENING PARTS NOT PART OF DELIVERY SPEC., PLEASE ORDER SEPARATELY
Description:
Gefahrgutkennzeichen: 2.4 Gas pressure shock absorbers.
Gefahrgutkennzeichen: 2.4 Gas pressure shock absorbers.
11
Shock Absorber Mercedes-Benz
Mercedes-Benz Notes: INAPPLICABLE TO VEHICLES WITH SPORTS UNDERCARRIAGE
FASTENING PARTS NOT PART OF DELIVERY SPEC., PLEASE ORDER SEPARATELY
NO LONGER AVAILABLE
FASTENING PARTS NOT PART OF DELIVERY SPEC., PLEASE ORDER SEPARATELY
NO LONGER AVAILABLE
14
Hexagon Head Bolt Mercedes-Benz
Mercedes-Benz Description: Hydropneumatic spring leg to spring control arm. Shock absorber to lower control arm m 10x1x60. Shock absorber to spring control arm m 10x1x60. Pitman arm to steering box assembly m10x1x60. Hydropneumatic spring leg to rear axle.
MSRP $42.50
$40.80
MSRP $42.50
$40.80
17
Washer Mercedes-Benz
Mercedes-Benz Description: Refrigerant compressor to support. Bearing cup to bearing bracket.
MSRP $2.70
$2.56
MSRP $2.70
$2.56
20
Hexagon Nut Mercedes-Benz
Mercedes-Benz Description: M10
Diameter: 10mm
Strength / hardness class: 10
Thread code letter: M
Thread pitch: 1mm
Width across flats: 16mm. Propeller shaft to transmission. Shock absorber to lower control arm m 10x1. Shock absorber to spring control arm m 10x1. Hydropneumatic spring leg to spring control arm m 10. Shock absorber to frame. Hydropneumatic spring leg to rear axle.
Diameter: 10mm
Strength / hardness class: 10
Thread code letter: M
Thread pitch: 1mm
Width across flats: 16mm. Propeller shaft to transmission. Shock absorber to lower control arm m 10x1. Shock absorber to spring control arm m 10x1. Hydropneumatic spring leg to spring control arm m 10. Shock absorber to frame. Hydropneumatic spring leg to rear axle.
MSRP $4.40
$4.16
MSRP $4.40
$4.16
23
Rubber Ring Mercedes-Benz
Mercedes-Benz Description: Front shock absorbers to frame. For shock absorber to front axle support up to chassis 9501819 only for export, special request, for bad roads from chas. For shock absorber at front axle support. Shock absorbers to subframe.
MSRP $4.20
$4.00
MSRP $4.20
$4.00
26
Rubber Bumper Mercedes-Benz
Mercedes-Benz Description: Hydropneumatic spring leg to frame. Shock absorber to frame. Bumper to body.
29
Window Mercedes-Benz
Mercedes-Benz Description: Hydropneumatic spring leg to frame. Shock absorber to frame to 201 320 09 31, 201 326 15 00. Shock absorber to frame to 201 320 12 31, 201 326 19 00. Shock absorber to frame to 124 320 10 31, 124 320 11 31.
32
Nut Mercedes-Benz
Mercedes-Benz Description: Spring strut to body. M8
Diameter: 8mm
Strength / hardness class: 8
Thread code letter: M
Thread pitch: 1,25mm
Outside diameter: 17,9mm
Width across flats: 13mm. Suspension strut to body. Torsion bar on body.
Diameter: 8mm
Strength / hardness class: 8
Thread code letter: M
Thread pitch: 1,25mm
Outside diameter: 17,9mm
Width across flats: 13mm. Suspension strut to body. Torsion bar on body.
32
Hexagon Nut Mercedes-Benz
Mercedes-Benz Description: M10X1
Diameter: 10mm
Strength / hardness class: 8
Thread code letter: M
Thread pitch: 1mm
Width across flats: 16mm. Front shock absorbers to frame. Bumper to body. Shock absorber to frame m 10x1. Hydropneumatic spring leg to frame m 10x1.
Diameter: 10mm
Strength / hardness class: 8
Thread code letter: M
Thread pitch: 1mm
Width across flats: 16mm. Front shock absorbers to frame. Bumper to body. Shock absorber to frame m 10x1. Hydropneumatic spring leg to frame m 10x1.
MSRP $3.70
$3.52
MSRP $3.70
$3.52
35
MSRP $20.00
$19.20
